【雲原生】Hadoop on k8s 環境部署
一、概述
Hadoop是Apache軟件基金會下一個開源分佈式計算平台，以HDFS（Hadoop Distributed File System）、MapReduce（Hadoop2.0加入了YARN，Yarn是資源調度框架，能夠細粒度的管理和調度任務，還能夠支持其他的計算框架，比如spark）為核心的Hadoop為用户提供了系統底層細節透明的分佈式基礎架構。hdfs的高容錯性、高伸縮性、高效性等優點讓用户可以將Hadoop部署在低廉的硬件上，形成分佈式系統。目前最新版本已經是3.x了，官方文檔。也可以參考我之前的文章：大數據Hadoop原理介紹+安裝+實戰操作（HDFS+YARN+MapReduce）
HDFS
YARN
二、開始部署
1）添加源
地址：https://artifacthub.io/packages/helm/apache-hadoop-helm/hadoop
bash
helm repo add apache-hadoop-helm https://pfisterer.github.io/apache-hadoop-helm/
helm pull apache-hadoop-helm/hadoop --version 1.2.0
tar -xf hadoop-1.2.0.tgz
2）構建鏡像 Dockerfile
```bash FROM myharbor.com/bigdata/centos:7.9.2009
RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone
RUN export LANG=zh_CN.UTF-8
創建用户和用户組，跟yaml編排裏的spec.template.spec.containers. securityContext.runAsUser: 9999
RUN groupadd --system --gid=9999 admin && useradd --system --home-dir /home/admin --uid=9999 --gid=admin admin
安裝sudo
RUN yum -y install sudo ; chmod 640 /etc/sudoers
給admin添加sudo權限
RUN echo "admin ALL=(ALL) NOPASSWD: ALL" >> /etc/sudoers
RUN yum -y install install net-tools telnet wget
RUN mkdir /opt/apache/
ADD jdk-8u212-linux-x64.tar.gz /opt/apache/
ENV JAVA_HOME=/opt/apache/jdk1.8.0_212 ENV PATH=$JAVA_HOME/bin:$PATH
ENV HADOOP_VERSION 3.3.2 ENV HADOOP_HOME=/opt/apache/hadoop
ENV HADOOP_COMMON_HOME=${HADOOP_HOME} \ HADOOP_HDFS_HOME=${HADOOP_HOME} \ HADOOP_MAPRED_HOME=${HADOOP_HOME} \ HADOOP_YARN_HOME=${HADOOP_HOME} \ HADOOP_CONF_DIR=${HADOOP_HOME}/etc/hadoop \ PATH=${PATH}:${HADOOP_HOME}/bin
RUN curl --silent --output /tmp/hadoop.tgz https://ftp-stud.hs-esslingen.de/pub/Mirrors/ftp.apache.org/dist/hadoop/common/hadoop-${HADOOP_VERSION}/hadoop-${HADOOP_VERSION}.tar.gz && tar --directory /opt/apache -xzf /tmp/hadoop.tgz && rm /tmp/hadoop.tgz
ADD hadoop-${HADOOP_VERSION}.tar.gz /opt/apache RUN ln -s /opt/apache/hadoop-${HADOOP_VERSION} ${HADOOP_HOME}
RUN chown -R admin:admin /opt/apache
WORKDIR $HADOOP_HOME
Hdfs ports
EXPOSE 50010 50020 50070 50075 50090 8020 9000
Mapred ports
EXPOSE 19888
Yarn ports
EXPOSE 8030 8031 8032 8033 8040 8042 8088
Other ports
EXPOSE 49707 2122 ``` 開始構建鏡像
```bash docker build -t myharbor.com/bigdata/hadoop:3.3.2 . --no-cache
參數解釋
-t：指定鏡像名稱
. ：當前目錄Dockerfile
-f：指定Dockerfile路徑
--no-cache：不緩存
推送到鏡像倉庫bash
docker push myharbor.com/bigdata/hadoop:3.3.2
```
調整目錄結構
bash
mkdir hadoop/templates/hdfs hadoop/templates/yarn
mv hadoop/templates/hdfs-* hadoop/templates/hdfs/
mv hadoop/templates/yarn-* hadoop/templates/yarn/
3）修改配置
hadoop/values.yaml
```yaml image: repository: myharbor.com/bigdata/hadoop tag: 3.3.2 pullPolicy: IfNotPresent
...
persistence: nameNode: enabled: true storageClass: "hadoop-nn-local-storage" accessMode: ReadWriteOnce size: 10Gi local: - name: hadoop-nn-0 host: "local-168-182-110" path: "/opt/bigdata/servers/hadoop/nn/data/data1"
dataNode: enabled: true storageClass: "hadoop-dn-local-storage" accessMode: ReadWriteOnce size: 20Gi local: - name: hadoop-dn-0 host: "local-168-182-110" path: "/opt/bigdata/servers/hadoop/dn/data/data1" - name: hadoop-dn-1 host: "local-168-182-110" path: "/opt/bigdata/servers/hadoop/dn/data/data2" - name: hadoop-dn-2 host: "local-168-182-110" path: "/opt/bigdata/servers/hadoop/dn/data/data3" - name: hadoop-dn-3 host: "local-168-182-111" path: "/opt/bigdata/servers/hadoop/dn/data/data1" - name: hadoop-dn-4 host: "local-168-182-111" path: "/opt/bigdata/servers/hadoop/dn/data/data2" - name: hadoop-dn-5 host: "local-168-182-111" path: "/opt/bigdata/servers/hadoop/dn/data/data3" - name: hadoop-dn-6 host: "local-168-182-112" path: "/opt/bigdata/servers/hadoop/dn/data/data1" - name: hadoop-dn-7 host: "local-168-182-112" path: "/opt/bigdata/servers/hadoop/dn/data/data2" - name: hadoop-dn-8 host: "local-168-182-112" path: "/opt/bigdata/servers/hadoop/dn/data/data3"
...
service: nameNode: type: NodePort ports: dfs: 9000 webhdfs: 9870 nodePorts: dfs: 30900 webhdfs: 30870 dataNode: type: NodePort ports: dfs: 9000 webhdfs: 9864 nodePorts: dfs: 30901 webhdfs: 30864 resourceManager: type: NodePort ports: web: 8088 nodePorts: web: 30088 ...
securityContext:
runAsUser: 9999
privileged: true
``
-hadoop/templates/hdfs/hdfs-nn-pv.yaml`
```yaml {{- range .Values.persistence.nameNode.local }}
apiVersion: v1 kind: PersistentVolume metadata: name: {{ .name }} labels: name: {{ .name }} spec: storageClassName: {{ $.Values.persistence.nameNode.storageClass }} capacity: storage: {{ $.Values.persistence.nameNode.size }} accessModes: - ReadWriteOnce local: path: {{ .path }} nodeAffinity: required: nodeSelectorTerms: - matchExpressions: - key: kubernetes.io/hostname operator: In values: - {{ .host }}
{{- end }} ```
hadoop/templates/hdfs/hdfs-dn-pv.yaml
```yaml {{- range .Values.persistence.dataNode.local }}
apiVersion: v1 kind: PersistentVolume metadata: name: {{ .name }} labels: name: {{ .name }} spec: storageClassName: {{ $.Values.persistence.dataNode.storageClass }} capacity: storage: {{ $.Values.persistence.dataNode.size }} accessModes: - ReadWriteOnce local: path: {{ .path }} nodeAffinity: required: nodeSelectorTerms: - matchExpressions: - key: kubernetes.io/hostname operator: In values: - {{ .host }}
{{- end }} ``` - 修改hdfs service
```bash mv hadoop/templates/hdfs/hdfs-nn-svc.yaml hadoop/templates/hdfs/hdfs-nn-svc-headless.yaml mv hadoop/templates/hdfs/hdfs-dn-svc.yaml hadoop/templates/hdfs/hdfs-dn-svc-headless.yaml
注意修改名稱，不要重複
`hadoop/templates/hdfs/hdfs-nn-svc.yaml`yaml
A headless service to create DNS records
apiVersion: v1
kind: Service
metadata:
name: {{ include "hadoop.fullname" . }}-hdfs-nn
labels:
app.kubernetes.io/name: {{ include "hadoop.name" . }}
helm.sh/chart: {{ include "hadoop.chart" . }}
app.kubernetes.io/instance: {{ .Release.Name }}
app.kubernetes.io/component: hdfs-nn
spec:
ports:
- name: dfs
port: {{ .Values.service.nameNode.ports.dfs }}
protocol: TCP
nodePort: {{ .Values.service.nameNode.nodePorts.dfs }}
- name: webhdfs
port: {{ .Values.service.nameNode.ports.webhdfs }}
nodePort: {{ .Values.service.nameNode.nodePorts.webhdfs }}
type: {{ .Values.service.nameNode.type }}
selector:
app.kubernetes.io/name: {{ include "hadoop.name" . }}
app.kubernetes.io/instance: {{ .Release.Name }}
app.kubernetes.io/component: hdfs-nn
`hadoop/templates/hdfs/hdfs-dn-svc.yaml`yaml
A headless service to create DNS records
apiVersion: v1 kind: Service metadata: name: {{ include "hadoop.fullname" . }}-hdfs-dn labels: app.kubernetes.io/name: {{ include "hadoop.name" . }} helm.sh/chart: {{ include "hadoop.chart" . }} app.kubernetes.io/instance: {{ .Release.Name }} app.kubernetes.io/component: hdfs-nn spec: ports: - name: dfs port: {{ .Values.service.dataNode.ports.dfs }} protocol: TCP nodePort: {{ .Values.service.dataNode.nodePorts.dfs }} - name: webhdfs port: {{ .Values.service.dataNode.ports.webhdfs }} nodePort: {{ .Values.service.dataNode.nodePorts.webhdfs }} type: {{ .Values.service.dataNode.type }} selector: app.kubernetes.io/name: {{ include "hadoop.name" . }} app.kubernetes.io/instance: {{ .Release.Name }} app.kubernetes.io/component: hdfs-dn ``` - 修改yarn service
```bash mv hadoop/templates/yarn/yarn-nm-svc.yaml hadoop/templates/yarn/yarn-nm-svc-headless.yaml mv hadoop/templates/yarn/yarn-rm-svc.yaml hadoop/templates/yarn/yarn-rm-svc-headless.yaml mv hadoop/templates/yarn/yarn-ui-svc.yaml hadoop/templates/yarn/yarn-rm-svc.yaml
注意修改名稱，不要重複
``hadoop/templates/yarn/yarn-rm-svc.yaml`
```yaml
Service to access the yarn web ui
apiVersion: v1 kind: Service metadata: name: {{ include "hadoop.fullname" . }}-yarn-rm labels: app.kubernetes.io/name: {{ include "hadoop.name" . }} helm.sh/chart: {{ include "hadoop.chart" . }} app.kubernetes.io/instance: {{ .Release.Name }} app.kubernetes.io/component: yarn-rm spec: ports: - port: {{ .Values.service.resourceManager.ports.web }} name: web nodePort: {{ .Values.service.resourceManager.nodePorts.web }} type: {{ .Values.service.resourceManager.type }} selector: app.kubernetes.io/name: {{ include "hadoop.name" . }} app.kubernetes.io/instance: {{ .Release.Name }} app.kubernetes.io/component: yarn-rm ``` - 修改控制器
在所有控制中新增如下內容：
yaml
containers:
...
securityContext:
runAsUser: {{ .Values.securityContext.runAsUser }}
privileged: {{ .Values.securityContext.privileged }}
hadoop/templates/hadoop-configmap.yaml
```bash
1、將/root換成/opt/apache
2、TMP_URL="http://{{ include "hadoop.fullname" . }}-yarn-rm-headless:8088/ws/v1/cluster/info"
```
4）開始安裝
```bash
創建存儲目錄
mkdir -p /opt/bigdata/servers/hadoop/{nn,dn}/data/data{1..3}

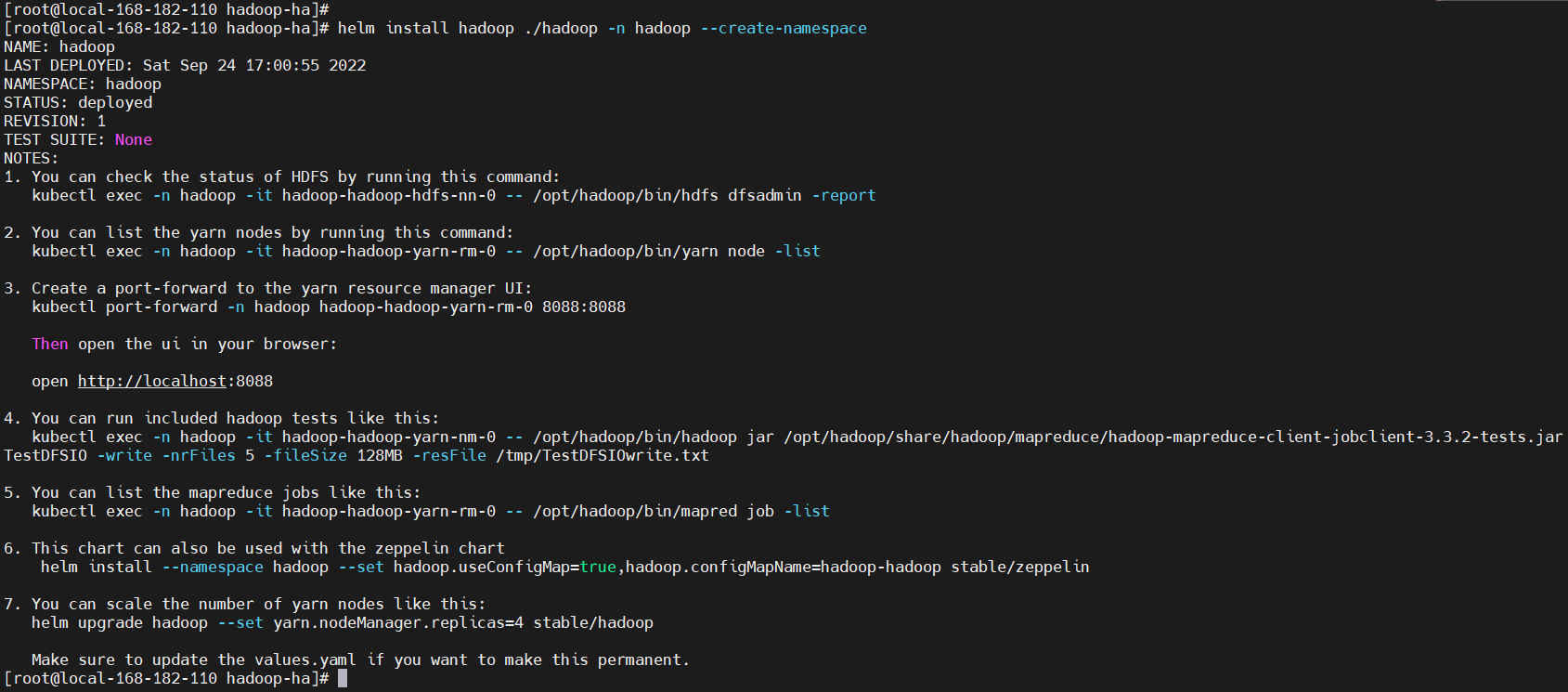

helm install hadoop ./hadoop -n hadoop --create-namespace ``` NOTES
```bash NAME: hadoop LAST DEPLOYED: Sat Sep 24 17:00:55 2022 NAMESPACE: hadoop STATUS: deployed REVISION: 1 TEST SUITE: None NOTES: 1. You can check the status of HDFS by running this command: kubectl exec -n hadoop -it hadoop-hadoop-hdfs-nn-0 -- /opt/hadoop/bin/hdfs dfsadmin -report
-
You can list the yarn nodes by running this command: kubectl exec -n hadoop -it hadoop-hadoop-yarn-rm-0 -- /opt/hadoop/bin/yarn node -list
-
Create a port-forward to the yarn resource manager UI: kubectl port-forward -n hadoop hadoop-hadoop-yarn-rm-0 8088:8088
Then open the ui in your browser:
open http://localhost:8088
-
You can run included hadoop tests like this: kubectl exec -n hadoop -it hadoop-hadoop-yarn-nm-0 -- /opt/hadoop/bin/hadoop jar /opt/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-client-jobclient-3.3.2-tests.jar TestDFSIO -write -nrFiles 5 -fileSize 128MB -resFile /tmp/TestDFSIOwrite.txt
-
You can list the mapreduce jobs like this: kubectl exec -n hadoop -it hadoop-hadoop-yarn-rm-0 -- /opt/hadoop/bin/mapred job -list
-
This chart can also be used with the zeppelin chart helm install --namespace hadoop --set hadoop.useConfigMap=true,hadoop.configMapName=hadoop-hadoop stable/zeppelin
-
You can scale the number of yarn nodes like this: helm upgrade hadoop --set yarn.nodeManager.replicas=4 stable/hadoop
Make sure to update the values.yaml if you want to make this permanent.
查看bash
kubectl get pods,svc -n hadoop -owide
```
hdfs web：http://192.168.182.110:30870/
yarn web：http://192.168.182.110:30088/
5）測試驗證
HDFS 測試驗證
bash
kubectl exec -it hadoop-hadoop-hdfs-nn-0 -n hadoop -- bash
[root@local-168-182-110 hadoop]# kubectl exec -it hadoop-hadoop-hdfs-nn-0 -n hadoop -- bash
bash-4.2$
bash-4.2$
bash-4.2$ hdfs dfs -mkdir /tmp
bash-4.2$ hdfs dfs -ls /
Found 1 items
drwxr-xr-x - admin supergroup 0 2022-09-24 17:56 /tmp
bash-4.2$ echo "test hadoop" >test.txt
bash-4.2$ hdfs dfs -put test.txt /tmp/
bash-4.2$ hdfs dfs -ls /tmp/
Found 1 items
-rw-r--r-- 3 admin supergroup 12 2022-09-24 17:57 /tmp/test.txt
bash-4.2$ hdfs dfs -cat /tmp/
cat: `/tmp': Is a directory
bash-4.2$ hdfs dfs -cat /tmp/test.txt
test hadoop
bash-4.2$
Yarn 的測試驗證等後面講到hive on k8s再來測試驗證。
6）卸載
```bash helm uninstall hadoop -n hadoop
kubectl delete pod -n hadoop kubectl get pod -n hadoop|awk 'NR>1{print $1}' --force
kubectl patch ns hadoop -p '{"metadata":{"finalizers":null}}'
kubectl delete ns hadoop --force
```
這裏也提供git下載地址，有需要的小夥伴可以下載部署玩玩，https://gitee.com/hadoop-bigdata/hadoop-on-k8s
在k8s集羣中yarn會慢慢被弱化，直接使用k8s資源調度，而不再使用yarn去調度資源了，這裏只是部署了單點，僅限於測試環境使用，下一篇文章會講Hadoop 高可用 on k8s 實現，請小夥伴耐心等待，有任何疑問歡迎給我留言~
